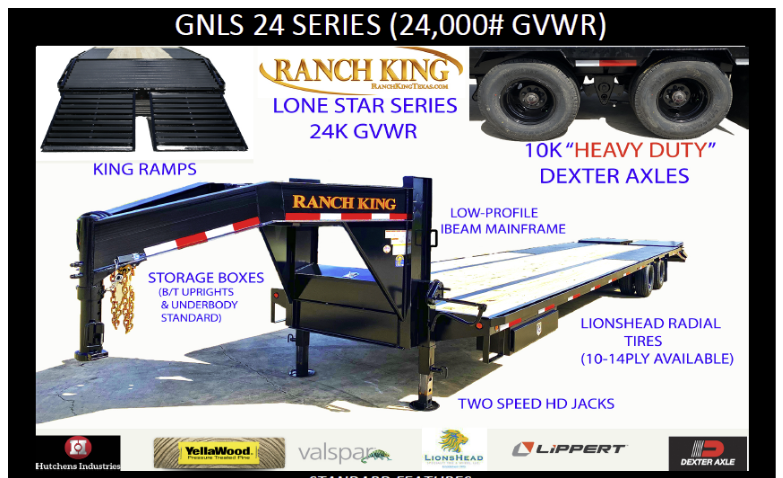

| Model - GNLS36-24DKC2LP |
1 |
|
$19,690 |
$19,690 |
standard |
| Length - 31+5 X 102 |
|
|
|
|
standard |
| Capacity - 16,400 lb |
|
|
|
|
standard |
| Gross Vehicle Weight Rating - 24,000 lb |
|
|
|
|
standard |
| Empty Weight - 7,600 lb |
|
|
|
|
standard |
| Axles - (2) 10000# DEXTER OIL BATH AXLES |
|
|
|
|
standard |
| Brake - (2) ELECTRIC BRAKING AXLES |
|
|
|
|
standard |
| Coupler - 2-5/16" ADJUSTABLE GN COUPLER 30K CAP |
|
|
|
|
standard |
| Cross Members - 3 X 2 RECT TUBING ON 16" CENTERS |
|
|
|
|
standard |
| Fenders - 3/16" HEAVY DUTY DIAMOND PLATE |
|
|
|
|
standard |
| Floor - 2X8 TREATED WOOD FLOOR |
|
|
|
|
standard |
| Frame - LOW PROFILE PIERCED I BEAM FRAME |
|
|
|
|
standard |
| Jack - 25K 2 SPEED LANDING GEAR |
|
|
|
|
standard |
| Lights - RUBBER MOUNTED AND SEALED LED |
|
|
|
|
standard |
| Paint - EPOXY PRIMER - URETHANE 4:1 PAINT |
|
|
|
|
standard |
| Tie Down - STAKE POCKETS AND WINCH RAIL |
|
|
|
|
standard |
| Tires & Wheels - 235/80/R16 E-RATED 10 PLY RADIAL |
|
|
|
|
standard |
| NECK - HIGH TENSILE I-BEAM |
|
|
|
|
standard |
| CHAINS - 3/8 SAFETY CHAINS |
|
|
|
|
standard |
| STORAGE - 48" UNDERBODY & FRONT TOOLBOXES |
|
|
|
|
standard |
| MOUNT - SPARE TIRE MOUNT IN NECK |
|
|
|
|
standard |
| WHEEL - 16" BLACK DUAL WHEELS (8-LUG) |
|
|
|
|
standard |
| SUSPENSION - HUTCH |
|
|
|
|
standard |
| PREP - COMMERCIAL BLAST |
|
|
|
|
standard |
| HIGH TENSIILE - CERTIFIED MILL SPEC A25 GRADE STEEL |
|
|
|
|
standard |
| RAMP - 2 X HD KING RAMPS |
|
|
|
|
standard |
| I BEAM - W12 X19#(UP TO 32') W12 X 22#(36' AND 40') |
|
|
|
|
standard |
| PRIMER - EPOXY PRIMER |
|
|
|
|
standard |
| WIRING - SEALED HARNESS RAN THROUGH FRAME |
|
|
|
|
standard |
